对比虚拟机和容器的区别

特性\类型

虚拟机

容器

镜像大小

重量级,虚拟机是iso文件,比较大.动辄GB级别

轻量级,镜像支持MB甚至KB

启动速度

慢，存在开机启动流程。分钟级别启动速度。

快，可以达到秒级启动。无开启启动流程。

性能

内存，CPU都是虚拟的，在实际运行过程中需要将虚拟CPU指令转换成宿主机能够识别的指令，存在性能消耗

直接使用宿主机的CPU和内存，不存在转换问题，性能更高。

部署

虚拟机部署服务和传统的物理机部署方式一致，需要手动部署或者借助自动化部署脚本或工具进行部署。

可以免去部署过程，直接基于镜像启动。

迁移

虚拟机迁移时需要将服务在新环境进行部署及数据的备份和恢复都得手动或者自动化脚本来操作。 尤其是跨操作系统还要解决软件包安装问题。

可以直接将容器提交为镜像，就可以完成迁移。

只要有docker容器的环境，可以实现跨操作系统迁移。

兼容性

各种虚拟化产品互相并不兼容，因此跨产品迁移是运维的一大痛点。甚至同类型产品的迁移都存在兼容性问题。

docker是一种打包文件的技术，可以直接将环境依赖进行打包处理。

二.容器的重启策略

1.容器重启策略概述

重启策略\描述

正常退出

异常退出

备注

no

不重启容器

不重启容器

默认策略

always

始终重启

始终重启

unless-stopped

始终重启

始终重启

重启docker容器服务时,如果容器之前就停止,则不启动该容器

如果容器重启之前时运行状态,则重启服务会启动容器

on-failure

不重启

始终重启

当然,也可以指定重启次数

所谓的容器重启策略,指的是容器在退出时是否进行重启以及重启docker服务时是否会默认启动容器。
容器的重启策略如上表所示四种。生产环境中Always和unless-stopped使用较多。

2.重启策略验证

1.启动测试环境
[root@elk91 ~]#docker image ls
REPOSITORY   TAG       IMAGE ID   CREATED   SIZE
[root@elk91 ~]#docker image load < alpine-v3.20.2.tar.gz
78561cef0761: Loading layer [==================================================>]  8.082MB/8.082MB
Loaded image: alpine:3.20.2
[root@elk91 ~]#docker image ls alpine
REPOSITORY   TAG       IMAGE ID       CREATED         SIZE
alpine       3.20.2    324bc02ae123   20 months ago   7.8MB
[root@elk91 ~]#docker container run -id --name c1-no --restart no alpine
Unable to find image 'alpine:latest' locally
^C
[root@elk91 ~]#docker container run -id --name c1-no --restart no alpine:3.20.2
64f84863fd4015c787fe4d1fe7adfdc02627253834425917704eb1acadf558a6
[root@elk91 ~]#docker container run -id --name c2-always --restart always alpine:3.20.2
402f6da6eb76160163cdd5c2029acb9bdd7018d4921b622e7b8f8b5102a692e7
[root@elk91 ~]#docker container run -id --name c3-unless-stopped --restart unless-stopped alpine:3.20.2
f04c971a16e7df2a81c1a84c4236d67ac198160cf9940a96441734e25050bfbd
[root@elk91 ~]#docker container run -id --name c4-on-failure --restart on-failure alpine:3.20.2
9621457de4792007f2423eae67fac604bfb1def8aaf040d89a14ef6067ad386c
[root@elk91 ~]#docker container run -id --name c5-on-failure-max --restart on-failure:3 alpine:3.20.2
aa45eeaced13b151fd45fdfc2e9a1205ca5ffb47ac1a858a34cdfd75360560ce
[root@elk91 ~]#docker container ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED              STATUS              PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   24 seconds ago       Up 24 seconds                 c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   About a minute ago   Up About a minute             c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   2 minutes ago        Up 2 minutes                  c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   2 minutes ago        Up 2 minutes                  c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   6 minutes ago        Up 6 minutes                  c1-no

2.重启docker服务测试验证
[root@elk91 ~]#systemctl restart docker.service
[root@elk91 ~]#docker container ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS                       PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   2 minutes ago   Up 3 seconds                           c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   3 minutes ago   Up 3 seconds                           c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   4 minutes ago   Up 3 seconds                           c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   5 minutes ago   Up 3 seconds                           c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   8 minutes ago   Exited (255) 4 seconds ago             c1-no

3.退出所有的容器并重启docker服务
[root@elk91 ~]#docker ps -aq
aa45eeaced13
9621457de479
f04c971a16e7
402f6da6eb76
64f84863fd40
[root@elk91 ~]#docker stop -t 0   `docker ps -aq`
aa45eeaced13
9621457de479
f04c971a16e7
402f6da6eb76
64f84863fd40
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS                       PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   5 minutes ago    Exited (137) 8 seconds ago             c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   6 minutes ago    Exited (137) 8 seconds ago             c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   7 minutes ago    Exited (137) 8 seconds ago             c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   7 minutes ago    Exited (137) 8 seconds ago             c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   11 minutes ago   Exited (255) 2 minutes ago             c1-no

[root@elk91 ~]#systemctl restart docker.service
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS                       PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   7 minutes ago    Up 57 seconds                          c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   8 minutes ago    Up 57 seconds                          c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   9 minutes ago    Exited (137) 2 minutes ago             c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   9 minutes ago    Up 57 seconds                          c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   13 minutes ago   Exited (255) 4 minutes ago             c1-no

4.模拟异常退出
[root@elk91 ~]#docker ps  -aq
aa45eeaced13
9621457de479
f04c971a16e7
402f6da6eb76
64f84863fd40
[root@elk91 ~]#docker container stop `docker ps  -aq`
aa45eeaced13
9621457de479
f04c971a16e7
402f6da6eb76
64f84863fd40
[root@elk91 ~]#docker container start `docker ps  -aq`
aa45eeaced13
9621457de479
f04c971a16e7
402f6da6eb76
64f84863fd40
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS          PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   11 minutes ago   Up 10 seconds             c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   12 minutes ago   Up 10 seconds             c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   13 minutes ago   Up 10 seconds             c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   13 minutes ago   Up 9 seconds              c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   17 minutes ago   Up 9 seconds              c1-no

[root@elk91 ~]#docker container inspect -f {{.State.Pid}} `docker ps -aq` | xargs kill -9
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS                       PORTS     NAMES
aa45eeaced13   alpine:3.20.2   "/bin/sh"   16 minutes ago   Up 5 seconds                           c5-on-failure-max
9621457de479   alpine:3.20.2   "/bin/sh"   18 minutes ago   Up 5 seconds                           c4-on-failure
f04c971a16e7   alpine:3.20.2   "/bin/sh"   18 minutes ago   Up 5 seconds                           c3-unless-stopped
402f6da6eb76   alpine:3.20.2   "/bin/sh"   19 minutes ago   Up 5 seconds                           c2-always
64f84863fd40   alpine:3.20.2   "/bin/sh"   22 minutes ago   Exited (137) 6 seconds ago

5.验证正常退出
 5.1 移除容器
  [root@elk91 ~]#docker container  rm -f `docker ps -qa`
    aa45eeaced13
    9621457de479
    f04c971a16e7
    402f6da6eb76
    64f84863fd40

5.2 启动时指定容器的启动命令
docker container run -itd --name c1-no  --restart no alpine:3.20.2 sleep 10
docker container run -itd --name c2-always  --restart always alpine:3.20.2 sleep 10
docker container run -itd --name c3-unless-stopped  --restart unless-stopped alpine:3.20.2  sleep 10
docker container run -itd --name c4-on-failure  --restart on-failure alpine:3.20.2 sleep 10
docker container run -itd --name c5-on-failure-max  --restart on-failure:3 alpine:3.20.2 sleep 10

5.3测试验证
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND      CREATED          STATUS          PORTS     NAMES
64cfef3d127b   alpine:3.20.2   "sleep 10"   7 seconds ago    Up 7 seconds              c5-on-failure-max
733e64fa746a   alpine:3.20.2   "sleep 10"   10 seconds ago   Up 9 seconds              c4-on-failure
fb6064b1cbd6   alpine:3.20.2   "sleep 10"   10 seconds ago   Up 9 seconds              c3-unless-stopped
f719e2f1e42c   alpine:3.20.2   "sleep 10"   10 seconds ago   Up 9 seconds              c2-always
e3efa86b8513   alpine:3.20.2   "sleep 10"   10 seconds ago   Up 10 seconds             c1-no

[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND      CREATED          STATUS                      PORTS     NAMES
64cfef3d127b   alpine:3.20.2   "sleep 10"   29 seconds ago   Exited (0) 19 seconds ago             c5-on-failure-max
733e64fa746a   alpine:3.20.2   "sleep 10"   32 seconds ago   Exited (0) 21 seconds ago             c4-on-failure
fb6064b1cbd6   alpine:3.20.2   "sleep 10"   32 seconds ago   Up Less than a second                 c3-unless-stopped
f719e2f1e42c   alpine:3.20.2   "sleep 10"   32 seconds ago   Up 1 second                           c2-always
e3efa86b8513   alpine:3.20.2   "sleep 10"   32 seconds ago   Exited (0) 22 seconds ago

三.容器的四种状态

1.容器的状态概述

状态\描述

描述

Up

表示容器处于运行状态,该容器可以对外提供服务

Exit

表示容器已经退出,如果退出代码为0 表示正常退出,非0则为异常退出

Pause

表示容器处于暂停状态,当前不对外提供服务

Create

表示容器已经创建,但是未启动

容器有四种状态，如上表所示。只有Up状态的容器才能对外提供服务。

2.实战案例

1.创建容器
[root@elk91 ~]#docker container  rm -f `docker ps -qa`
64cfef3d127b
733e64fa746a
fb6064b1cbd6
f719e2f1e42c
e3efa86b8513
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES

[root@elk91 ~]#docker container create -it --name c1 --restart always alpine:3.20.2
497218e1e674920e7db39c18208a8c6f17eadc4a8f86578aa27ec3d1ccd8eb19
[root@elk91 ~]#docker  ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS    PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   6 seconds ago   Created             c1

2.启动容器让其变为Up状态
[root@elk91 ~]#docker start c1
c1
[root@elk91 ~]#docker container ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS          PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   2 minutes ago   Up 16 seconds             c1

3.暂停或恢复容器
[root@elk91 ~]#docker container pause c1
c1
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS                       PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   3 minutes ago   Up About a minute (Paused)

[root@elk91 ~]#docker container exec -it c1 bash
Error response from daemon: Container c1 is paused, unpause the container before exec

[root@elk91 ~]#docker container  unpause c1
c1
[root@elk91 ~]#docker container ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS         PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   5 minutes ago   Up 3 minutes             c1

[root@elk91 ~]#docker container exec -it c1 sh
/ # cat /etc/hosts
127.0.0.1	localhost
::1	localhost ip6-localhost ip6-loopback
fe00::0	ip6-localnet
ff00::0	ip6-mcastprefix
ff02::1	ip6-allnodes
ff02::2	ip6-allrouters
172.17.0.2	497218e1e674
/ #

[root@elk91 ~]#docker container restart c1
c1
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS         PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   7 minutes ago   Up 6 seconds             c1

4.停止容器
[root@elk91 ~]#docker container ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS              PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   8 minutes ago   Up About a minute             c1
[root@elk91 ~]#docker container stop -t 0 c1
c1
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS                       PORTS     NAMES
497218e1e674   alpine:3.20.2   "/bin/sh"   9 minutes ago   Exited (137) 9 seconds ago

四.存储卷实战

1.存储卷的概述

所谓的存储卷就是为了让容器的数据进行持久化,说白了就是让容器的数据不丢失
docker关于存储卷可以指定一个宿主机的路径,也可以使用存储卷进行管理。

2.将宿主机的指定路径挂载在到容器实现数据持久化

1.导入测试镜像
[root@elk91 ~]#docker image load -i oldboyedu-nginx-1.27.4-alpine.tar.gz
08000c18d16d: Loading layer [==================================================>]  8.121MB/8.121MB
c1761f3c364a: Loading layer [==================================================>]  4.504MB/4.504MB
8f3c313eb124: Loading layer [==================================================>]  3.584kB/3.584kB
c9ce8cb4e76a: Loading layer [==================================================>]  4.608kB/4.608kB
252b6db79fae: Loading layer [==================================================>]   2.56kB/2.56kB
f1f70b13aacc: Loading layer [==================================================>]   5.12kB/5.12kB
9af9e76ea07f: Loading layer [==================================================>]  7.168kB/7.168kB
c18897d5e3dd: Loading layer [==================================================>]  36.65MB/36.65MB
Loaded image: nginx:1.27.4-alpine

2.运行容器将宿主机的指定路径挂在到容器
[root@elk91 ~]#ll /oldboyedu/data
ls: cannot access '/oldboyedu/data': No such file or directory
[root@elk91 ~]#docker container run -d --name web -p 81:80 --restart always -v /oldboyedu/data:/usr/share/nginx/html/ nginx:1.27.4-alpine
fd641471422553d0c7b999b51120f3ffe4d94c5865975d3fb76418b4ab0607af
[root@elk91 ~]#ll /oldboyedu/data/
total 8
drwxr-xr-x 2 root root 4096 Apr  9 16:28 ./
drwxr-xr-x 4 root root 4096 Apr  9 16:28 ../

3.测试验证本地和容器是否共享数据
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                 COMMAND                  CREATED              STATUS              PORTS                               NAMES
fd6414714225   nginx:1.27.4-alpine   "/docker-entrypoint.…"   About a minute ago   Up About a minute   0.0.0.0:81->80/tcp, :::81->80/tcp   web

[root@elk91 ~]#ll /oldboyedu/data/
total 8
drwxr-xr-x 2 root root 4096 Apr  9 16:28 ./
drwxr-xr-x 4 root root 4096 Apr  9 16:28 ../
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                 COMMAND                  CREATED              STATUS              PORTS                               NAMES
fd6414714225   nginx:1.27.4-alpine   "/docker-entrypoint.…"   About a minute ago   Up About a minute   0.0.0.0:81->80/tcp, :::81->80/tcp   web
[root@elk91 ~]#docker container exec -it web sh
/ # ls -l /usr/share/nginx/html/
total 0
/ # echo www.oldboyedu.com > /usr/share/nginx/html/index.html
/ # ls -l /usr/share/nginx/html/
total 4
-rw-r--r--    1 root     root            18 Apr  9 08:31 index.html
/ # exit
[root@elk91 ~]#cat /oldboyedu/data/index.html
www.oldboyedu.com
[root@elk91 ~]#echo linux102 >/oldboyedu/data/index.html
[root@elk91 ~]#cat /oldboyedu/data/index.html
linux102
[root@elk91 ~]#docker exec -it web sh
/ # cat /usr/share/nginx/html/index.html
linux102
/ # exit

4.删除容器验证宿主机数据是否丢失
[root@elk91 ~]#docker container rm -f web
web
[root@elk91 ~]#cat /oldboyedu/data/index.html
linux102

5.重新创建新的容器也可以指定之前的存储卷
[root@elk91 ~]#docker run -d --name web02 -p 81:80 --restart always -v /oldboyedu/data:/usr/share/nginx/html/ nginx:1.27.4-alpine
052a77d09635713710b15c31e13180aa990c85cc6b2290eaaf8980eede1e1c7b

[root@elk91 ~]#docker container exec -it web02 sh
/ # cat /usr/share/nginx/html/index.html
linux102

6.创建新的容器和已经存在的容器使用相同的存储卷
[root@elk91 ~]#docker container run -d --name web01 -p 82:80 --restart always --volumes-from web02 nginx:1.27.4-alpine
b09ae3ca3ee7202a1056a4b753c713c85bd877a2ee42d138bcc4bdae935c363d

[root@elk91 ~]#docker container ps -a
CONTAINER ID   IMAGE                 COMMAND                  CREATED          STATUS          PORTS                               NAMES
b09ae3ca3ee7   nginx:1.27.4-alpine   "/docker-entrypoint.…"   15 seconds ago   Up 14 seconds   0.0.0.0:82->80/tcp, :::82->80/tcp   web01
052a77d09635   nginx:1.27.4-alpine   "/docker-entrypoint.…"   10 minutes ago   Up 10 minutes   0.0.0.0:81->80/tcp, :::81->80/tcp   web02


[root@elk91 ~]#curl 10.0.0.91:81
linux102
[root@elk91 ~]#curl 10.0.0.91:82
linux102

[root@elk91 ~]#docker exec  web02 cat /usr/share/nginx/html/index.html
linux102
[root@elk91 ~]#docker exec  web01 cat /usr/share/nginx/html/index.html
linux102

3.容器使用存储卷案例

1.查看存储卷
[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     2fabec594669ea7efed83c651f56b055af68c215547269cd7beb46dfd68fbe4d
local     5c88535708428bf8a12dcd5ea360fba797f7b3258140ffc822af3b05ef6c00ca
local     99bab3a48faaca9be003b825a4fb76f94bb6732a64ffc25676f0e01d47e510df
local     94071a1d78742ad97eb6229b8dfb6e2a27493b26ef33ffdeb090d0807a4c5597

2.删除未使用的存储卷释放空间
[root@elk91 ~]#docker volume prune -f
Deleted Volumes:
2fabec594669ea7efed83c651f56b055af68c215547269cd7beb46dfd68fbe4d
5c88535708428bf8a12dcd5ea360fba797f7b3258140ffc822af3b05ef6c00ca
94071a1d78742ad97eb6229b8dfb6e2a27493b26ef33ffdeb090d0807a4c5597
99bab3a48faaca9be003b825a4fb76f94bb6732a64ffc25676f0e01d47e510df

Total reclaimed space: 481.6MB

[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME


3.创建存储卷
[root@elk91 ~]#docker volume create
1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470
[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470

自定义创建
[root@elk91 ~]#docker volume create oldboyedu
oldboyedu
[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470
local     oldboyedu

4.查看存储卷的详细信息
[root@elk91 ~]#docker volume inspect oldboyedu
[
    {
        "CreatedAt": "2026-04-09T16:56:27+08:00",
        "Driver": "local",
        "Labels": {},
        "Mountpoint": "/var/lib/docker/volumes/oldboyedu/_data",
        "Name": "oldboyedu",
        "Options": {},
        "Scope": "local"
    }
]


[root@elk91 ~]#docker volume inspect 1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470
[
    {
        "CreatedAt": "2026-04-09T16:55:29+08:00",
        "Driver": "local",
        "Labels": {},
        "Mountpoint": "/var/lib/docker/volumes/1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470/_data",
        "Name": "1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470",
        "Options": {},
        "Scope": "local"
    }
]

[root@elk91 ~]#ll /var/lib/docker/volumes/1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470/_data
total 8
drwxr-xr-x 2 root root 4096 Apr  9 16:55 ./
drwx-----x 3 root root 4096 Apr  9 16:55 ../
[root@elk91 ~]#ll /var/lib/docker/volumes/
total 40
drwx-----x  4 root root   4096 Apr  9 16:56 ./
drwx--x--- 14 root root   4096 Apr  9 15:38 ../
drwx-----x  3 root root   4096 Apr  9 16:55 1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470/
brw-------  1 root root 253, 0 Apr  9 15:38 backingFsBlockDev
-rw-------  1 root root  32768 Apr  9 16:56 metadata.db
drwx-----x  3 root root   4096 Apr  9 16:56 oldboyedu/

5.删除指定的存储卷
[root@elk91 ~]#docker volume rm 1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470
1e63bd0a9f413748f44288a28e5e563f7d9323d1b04f3319e6ae8edd47684470
[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     oldboyedu

[root@elk91 ~]#docker volume prune -f
Deleted Volumes:
oldboyedu

Total reclaimed space: 0B

6.容器使用存储卷案例
[root@elk91 ~]#docker run -itd --name web03 --restart always -v linux100:/usr/share/nginx/html nginx:1.27.4-alpine
902bf14a4640445de5afd38530f7fd4ad0414802c1f8ee59d508f85d4f2d262f
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE                 COMMAND                  CREATED             STATUS             PORTS                               NAMES
902bf14a4640   nginx:1.27.4-alpine   "/docker-entrypoint.…"   5 seconds ago       Up 4 seconds       80/tcp                              web03
b09ae3ca3ee7   nginx:1.27.4-alpine   "/docker-entrypoint.…"   51 minutes ago      Up 51 minutes      0.0.0.0:82->80/tcp, :::82->80/tcp   web01
052a77d09635   nginx:1.27.4-alpine   "/docker-entrypoint.…"   About an hour ago   Up About an hour   0.0.0.0:81->80/tcp, :::81->80/tcp   web02

[root@elk91 ~]#docker run -itd --name web04 -p 83:80 --restart always -v /usr/share/nginx/html nginx:1.27.4-alpine
2938ebc0d0056831d8a756cf12ad8e42dabc79a3f28041fe04f9b0021003f5ce
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                 COMMAND                  CREATED         STATUS         PORTS                               NAMES
2938ebc0d005   nginx:1.27.4-alpine   "/docker-entrypoint.…"   9 seconds ago   Up 9 seconds   0.0.0.0:83->80/tcp, :::83->80/tcp   web04

[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9
local     linux100

[root@elk91 ~]#docker volume inspect f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9
[
    {
        "CreatedAt": "2026-04-09T17:41:22+08:00",
        "Driver": "local",
        "Labels": null,
        "Mountpoint": "/var/lib/docker/volumes/f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9/_data",
        "Name": "f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9",
        "Options": null,
        "Scope": "local"
    }
]


[root@elk91 ~]#echo www.oldboyedu.com >/var/lib/docker/volumes/f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9/_data/index.html


[root@elk91 ~]#docker container  exec   web04  cat  /usr/share/nginx/html/index.html
www.oldboyedu.com

[root@elk91 ~]#curl 10.0.0.91:83
www.oldboyedu.com

六.docker的单机网络管理

1.端口映射底层原理

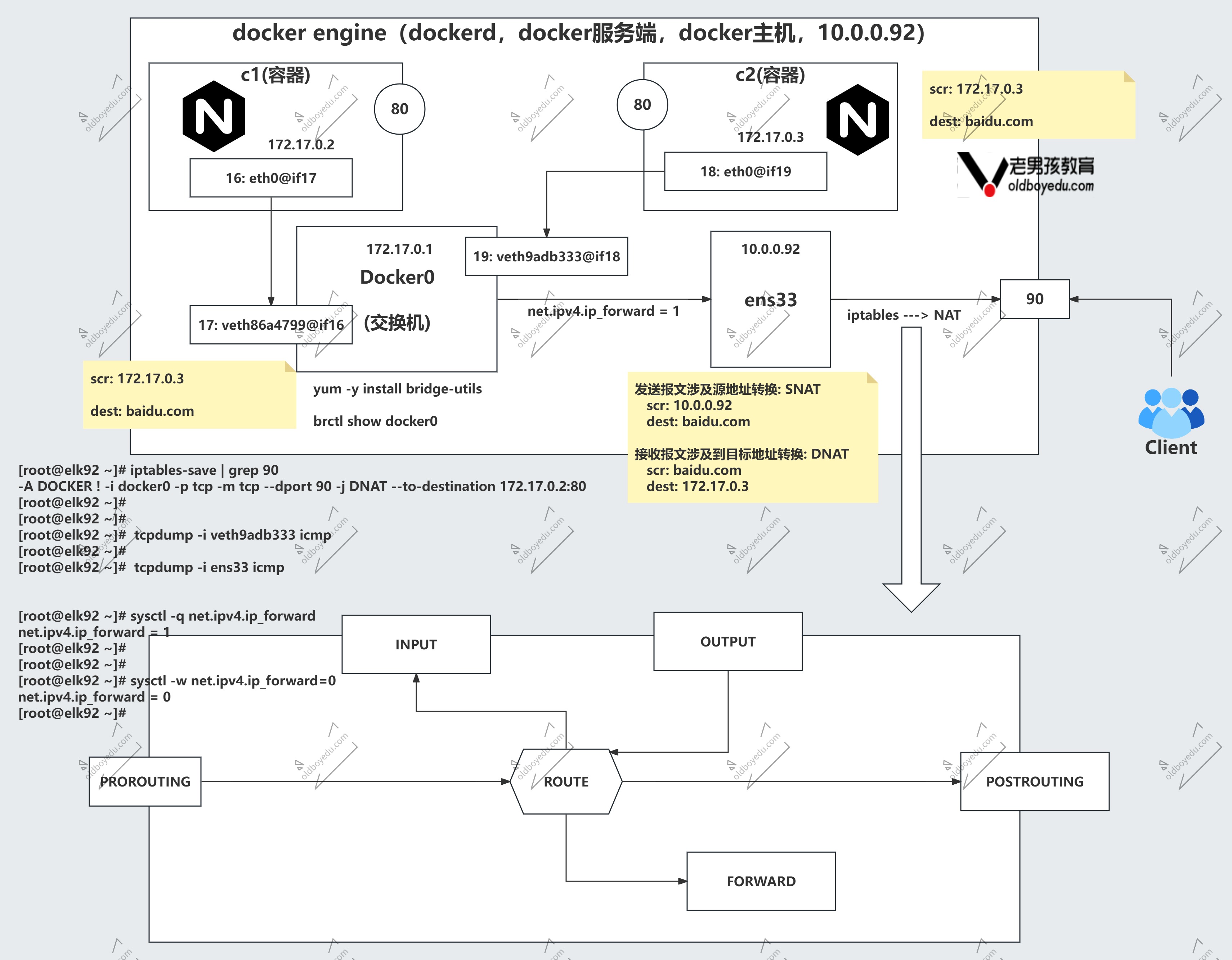

1.1 架构图解

在使用时可以使用-p进行端口转发

[root@elk91 ~]#docker  run -itd --name c11 -p 10.0.0.91:9153:53/udp alpine:3.20.2
859cb5a49ab46d7f7ee4ed65e4d9e0552a4c2b36393ee49d69fc664b3f21d666
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS         PORTS                    NAMES
859cb5a49ab4   alpine:3.20.2   "/bin/sh"   7 seconds ago   Up 7 seconds   10.0.0.91:9153->53/udp   c11
[root@elk91 ~]#docker  run -itd --name c22 -p 10.0.0.91:9153:53/udp alpine:3.20.2
7dcc2ffa0c8f73e5a0bb7ec75e4e1e97cd08bf1c91ac3f04cb8b637ff5ca792e


[root@elk91 ~]#docker  run -itd --name c22 -p 10.0.0.91::53/udp alpine:3.20.2
a5f6fe136016e02d893a5af25dd4907d20a8d23f175c6a59b60b465ae3f3ccd1
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED              STATUS              PORTS                     NAMES
a5f6fe136016   alpine:3.20.2   "/bin/sh"   7 seconds ago        Up 6 seconds        10.0.0.91:32768->53/udp   c22
859cb5a49ab4   alpine:3.20.2   "/bin/sh"   About a minute ago   Up About a minute   10.0.0.91:9153->53/udp    c11
[root@elk91 ~]#docker  run -itd --name c33 -p ::53/udp alpine:3.20.2
85e89ab347d7aaec5cb72202c5ad8bb984f79842b243bf3fd439d72bb7f4bee5
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS          PORTS                                     NAMES
85e89ab347d7   alpine:3.20.2   "/bin/sh"   2 seconds ago    Up 1 second     0.0.0.0:32769->53/udp, :::32768->53/udp   c33
a5f6fe136016   alpine:3.20.2   "/bin/sh"   47 seconds ago   Up 46 seconds   10.0.0.91:32768->53/udp                   c22
859cb5a49ab4   alpine:3.20.2   "/bin/sh"   2 minutes ago    Up 2 minutes    10.0.0.91:9153->53/udp                    c11
[root@elk91 ~]#docker  run -itd --name c44 -p 19200:9200 alpine:3.20.2
e0f5bb3774425b87b5a54c30b58e4c50a6c439ffb3b6c877c2e2dc32bc129292
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED              STATUS              PORTS                                         NAMES
e0f5bb377442   alpine:3.20.2   "/bin/sh"   2 seconds ago        Up 1 second         0.0.0.0:19200->9200/tcp, :::19200->9200/tcp   c44
85e89ab347d7   alpine:3.20.2   "/bin/sh"   About a minute ago   Up About a minute   0.0.0.0:32769->53/udp, :::32768->53/udp       c33
a5f6fe136016   alpine:3.20.2   "/bin/sh"   2 minutes ago        Up 2 minutes        10.0.0.91:32768->53/udp                       c22
859cb5a49ab4   alpine:3.20.2   "/bin/sh"   3 minutes ago        Up 3 minutes        10.0.0.91:9153->53/udp                        c11

1.2案例实战

1.创建测试容器
[root@elk91 ~]#docker run -itd --name haha -p 90:80 alpine:3.20.2
0704961d264d2eafc9e36e944703fa9f7e98e285a180d1048b6d27e06e9a8c38
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS         PORTS                               NAMES
0704961d264d   alpine:3.20.2   "/bin/sh"   10 seconds ago   Up 9 seconds   0.0.0.0:90->80/tcp, :::90->80/tcp   haha

2.查看容器的网卡信息及路由表
[root@elk91 ~]#docker exec -it haha sh
/ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
444: eth0@if445: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever
/ # route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.17.0.1      0.0.0.0         UG    0      0        0 eth0
172.17.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0
/ #

3.查看宿主机的ip地址以及网卡信息
[root@elk91 ~]#ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:b7:95:c6 brd ff:ff:ff:ff:ff:ff
    altname enp2s1
    inet 10.0.0.91/24 brd 10.0.0.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:feb7:95c6/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:24:86:48:52 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:24ff:fe86:4852/64 scope link
       valid_lft forever preferred_lft forever
445: vetha417cb9@if444: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 56:6b:1d:0a:a5:bd brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::546b:1dff:fe0a:a5bd/64 scope link
       valid_lft forever preferred_lft forever

4.查看网卡接口
[root@elk91 ~]#apt install -y bridge-utils
[root@elk91 ~]#brctl show docker0
bridge name	bridge id		STP enabled	interfaces
docker0		8000.024224864852	no		vetha417cb9

5.查看物理机端口转发规则
[root@elk91 ~]#iptables-save | grep 90
-A DOCKER ! -i docker0 -p tcp -m tcp --dport 90 -j DNAT --to-destination 172.17.0.2:80

6.ping测试
[root@elk91 ~]#docker exec -it haha sh
/ # ping baidu.com -c 3
PING baidu.com (124.237.177.164): 56 data bytes
64 bytes from 124.237.177.164: seq=0 ttl=127 time=89.615 ms
64 bytes from 124.237.177.164: seq=1 ttl=127 time=109.390 ms
64 bytes from 124.237.177.164: seq=2 ttl=127 time=108.804 ms

--- baidu.com ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 89.615/102.603/109.390 ms
/ #

7.tcpdump抓包虚拟网卡
[root@elk91 ~]#tcpdump -i vetha417cb9 icmp
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on vetha417cb9, link-type EN10MB (Ethernet), snapshot length 262144 bytes
20:03:06.215361 IP 172.17.0.2 > 124.237.177.164: ICMP echo request, id 22, seq 0, length 64
20:03:06.306788 IP 124.237.177.164 > 172.17.0.2: ICMP echo reply, id 22, seq 0, length 64
20:03:07.215835 IP 172.17.0.2 > 124.237.177.164: ICMP echo request, id 22, seq 1, length 64
20:03:07.310793 IP 124.237.177.164 > 172.17.0.2: ICMP echo reply, id 22, seq 1, length 64
20:03:08.216539 IP 172.17.0.2 > 124.237.177.164: ICMP echo request, id 22, seq 2, length 64
20:03:08.335760 IP 124.237.177.164 > 172.17.0.2: ICMP echo reply, id 22, seq 2, length 64

8.tcpdump抓物理网卡
[root@elk91 ~]#ping www.baidu.com
PING www.a.shifen.com (111.45.11.5) 56(84) bytes of data.
64 bytes from 111.45.11.5 (111.45.11.5): icmp_seq=1 ttl=128 time=24.0 ms
64 bytes from 111.45.11.5 (111.45.11.5): icmp_seq=2 ttl=128 time=32.4 ms


[root@elk91 ~]#tcpdump -i ens33  icmp
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on ens33, link-type EN10MB (Ethernet), snapshot length 262144 bytes
20:12:38.787469 IP elk91 > 111.45.11.5: ICMP echo request, id 2, seq 301, length 64
20:12:38.811702 IP 111.45.11.5 > elk91: ICMP echo reply, id 2, seq 301, length 64
20:12:39.789364 IP elk91 > 111.45.11.5: ICMP echo request, id 2, seq 302, length 64
20:12:39.816664 IP 111.45.11.5 > elk91: ICMP echo reply, id 2, seq 302, length 64

9.关闭内核参数
[root@elk91 ~]#sysctl -q net.ipv4.ip_forward
net.ipv4.ip_forward = 1

关闭内核转发
[root@elk91 ~]#sysctl -w net.ipv4.ip_forward=0
net.ipv4.ip_forward = 0
[root@elk91 ~]#sysctl -q net.ipv4.ip_forward
net.ipv4.ip_forward = 0

10.验证容器无法访问外网
[root@elk91 ~]#docker exec -it haha sh
/ # ping www.baidu.com
ping: bad address 'www.baidu.com'

重新开启内核转发
[root@elk91 ~]#sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
[root@elk91 ~]#sysctl -q net.ipv4.ip_forward
net.ipv4.ip_forward = 1
/ # ping www.baidu.com
PING www.baidu.com (183.240.99.224): 56 data bytes
64 bytes from 183.240.99.224: seq=0 ttl=127 time=27.735 ms
64 bytes from 183.240.99.224: seq=1 ttl=127 time=47.080 ms
64 bytes from 183.240.99.224: seq=2 ttl=127 time=45.503 ms
64 bytes from 183.240.99.224: seq=3 ttl=127 time=30.433 ms
64 bytes from 183.240.99.224: seq=4 ttl=127 time=44.232 ms

2.单机网络类型

2.1单机网络类型概述

类型\描述

描述

bridge

为容器创建一对虚拟网卡,默认类型

host

不为容器创建虚拟网卡,而是共享宿主机的网络名称空间

这种网络类型性能高,但是要注意容器和宿主机端口冲突问题

none

不为容器分配任何网卡设备,仅有一块lo本地回环网卡

container

和一个正在运行的容器共享网络名称空间

custom network

可以自定义网络,子网掩码,网关,驱动等信息,内置DNS解析功能。

如果不为网络指定驱动,则默认使用bridge网络类型驱动

2.2内置的四种类型案例

1.准备测试环境
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
[root@elk91 ~]#docker run -id --name c1-bridge --network bridge alpine:3.20.2
9d33f01c1c70611b4d1b263d1e85b2e182d2619ed39c33f899c17900c9efcecb
[root@elk91 ~]#docker run -id --name c2-none --network none alpine:3.20.2
6616732d0364b65bbd70e0a0db8357fdf72074a9ab110f212b0c120b46b476fb
[root@elk91 ~]#docker run -id --name c3-host --network host alpine:3.20.2
8b621baf19e6272846cd70896da194369f7fe5929b6418fb320589f6a2af6c77
[root@elk91 ~]#docker run -id --name c4-container --network container:c1-bridge alpine:3.20.2
f9a194abebbd80d141fd1642932122898cd6de76b9152420baadb43d57900c1d

[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED          STATUS          PORTS     NAMES
f9a194abebbd   alpine:3.20.2   "/bin/sh"   3 seconds ago    Up 3 seconds              c4-container
8b621baf19e6   alpine:3.20.2   "/bin/sh"   12 minutes ago   Up 12 minutes             c3-host
6616732d0364   alpine:3.20.2   "/bin/sh"   12 minutes ago   Up 12 minutes             c2-none
9d33f01c1c70   alpine:3.20.2   "/bin/sh"   12 minutes ago   Up 12 minutes             c1-bridge

2.查看本地网卡
[root@elk91 ~]#ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:b7:95:c6 brd ff:ff:ff:ff:ff:ff
    altname enp2s1
    inet 10.0.0.91/24 brd 10.0.0.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:feb7:95c6/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:24:86:48:52 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:24ff:fe86:4852/64 scope link
       valid_lft forever preferred_lft forever
447: veth61da65a@if446: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 32:52:a2:70:00:cb brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::3052:a2ff:fe70:cb/64 scope link
       valid_lft forever preferred_lft forever

3.查看各个容器的网络信息
[root@elk91 ~]#docker exec c1-bridge ip
BusyBox v1.36.1 (2024-06-10 07:11:47 UTC) multi-call binary.

Usage: ip [OPTIONS] address|route|link|tunnel|neigh|rule [ARGS]

OPTIONS := -f[amily] inet|inet6|link | -o[neline]

ip addr add|del IFADDR dev IFACE | show|flush [dev IFACE] [to PREFIX]
ip route list|flush|add|del|change|append|replace|test ROUTE
ip link set IFACE [up|down] [arp on|off] [multicast on|off]
	[promisc on|off] [mtu NUM] [name NAME] [qlen NUM] [address MAC]
	[master IFACE | nomaster] [netns PID]
ip tunnel add|change|del|show [NAME]
	[mode ipip|gre|sit] [remote ADDR] [local ADDR] [ttl TTL]
ip neigh show|flush [to PREFIX] [dev DEV] [nud STATE]
ip rule [list] | add|del SELECTOR ACTION
[root@elk91 ~]#docker exec c1-bridge ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
446: eth0@if447: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever
[root@elk91 ~]#docker exec c2-none ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
[root@elk91 ~]#docker exec c3-host ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP qlen 1000
    link/ether 00:0c:29:b7:95:c6 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.91/24 brd 10.0.0.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:feb7:95c6/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:24:86:48:52 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:24ff:fe86:4852/64 scope link
       valid_lft forever preferred_lft forever
447: veth61da65a@if446: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue master docker0 state UP
    link/ether 32:52:a2:70:00:cb brd ff:ff:ff:ff:ff:ff
    inet6 fe80::3052:a2ff:fe70:cb/64 scope link
       valid_lft forever preferred_lft forever
[root@elk91 ~]#docker exec c4-container ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
446: eth0@if447: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever

2.3自定义网络案例

1.查看现有的网路类型
[root@elk91 ~]#docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
405ee24664fc   bridge    bridge    local
a8d63d38ec96   host      host      local
af8c56e20106   none      null      local

2.创建自定义网络
[root@elk91 ~]#docker network create -d bridge --subnet 172.20.0.0/16 --ip
--ip-range     --ipam-driver  --ipam-opt     --ipv6
[root@elk91 ~]#docker network create -d bridge --subnet 172.20.0.0/16 --ip-range 172.20.100.0/24 --gateway 172.20.0.254 oldboyedu
2b121a538b9abfec4b46bff5f1a80880d9c8142e19de993b73438b11014b9b72
[root@elk91 ~]#docker network ls
NETWORK ID     NAME        DRIVER    SCOPE
405ee24664fc   bridge      bridge    local
a8d63d38ec96   host        host      local
af8c56e20106   none        null      local
2b121a538b9a   oldboyedu   bridge    local

3.查看网络的详细信息
[root@elk91 ~]#docker network inspect oldboyedu
[
    {
        "Name": "oldboyedu",
        "Id": "2b121a538b9abfec4b46bff5f1a80880d9c8142e19de993b73438b11014b9b72",
        "Created": "2026-04-09T21:14:06.288420192+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.20.0.0/16",
                    "IPRange": "172.20.100.0/24",
                    "Gateway": "172.20.0.254"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]

4.容器使用自定义网络
[root@elk91 ~]#docker run -id --name c1 --restart always --network oldboyedu alpine:3.20.2
79cf7cc5ed905062f7e976f0a64304bb85ab511cca17bb7d553e5c7903a0fe4f
[root@elk91 ~]#docker run -id --name c2 --restart always --network oldboyedu alpine:3.20.2
d04b3fc905a77e8c4cba70214baf962e8f078e6a0ed43c74c5b9a863ae172e91
[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE           COMMAND     CREATED         STATUS         PORTS     NAMES
d04b3fc905a7   alpine:3.20.2   "/bin/sh"   5 seconds ago   Up 4 seconds             c2
79cf7cc5ed90   alpine:3.20.2   "/bin/sh"   7 seconds ago   Up 7 seconds             c1

[root@elk91 ~]#docker exec -it c1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
453: eth0@if454: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:14:64:00 brd ff:ff:ff:ff:ff:ff
    inet 172.20.100.0/16 brd 172.20.255.255 scope global eth0
       valid_lft forever preferred_lft forever
[root@elk91 ~]#docker exec -it c2 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
455: eth0@if456: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:14:64:01 brd ff:ff:ff:ff:ff:ff
    inet 172.20.100.1/16 brd 172.20.255.255 scope global eth0
       valid_lft forever preferred_lft forever
[root@elk91 ~]#docker exec -it c1 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.20.0.254    0.0.0.0         UG    0      0        0 eth0
172.20.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0
[root@elk91 ~]#docker exec -it c1 ping c2 -c 3
PING c2 (172.20.100.1): 56 data bytes
64 bytes from 172.20.100.1: seq=0 ttl=64 time=0.210 ms
64 bytes from 172.20.100.1: seq=1 ttl=64 time=0.113 ms
64 bytes from 172.20.100.1: seq=2 ttl=64 time=0.118 ms

--- c2 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.113/0.147/0.210 ms

5.再次查看网络自定义信息
[root@elk91 ~]#docker network inspect oldboyedu
[
    {
        "Name": "oldboyedu",
        "Id": "2b121a538b9abfec4b46bff5f1a80880d9c8142e19de993b73438b11014b9b72",
        "Created": "2026-04-09T21:14:06.288420192+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.20.0.0/16",
                    "IPRange": "172.20.100.0/24",
                    "Gateway": "172.20.0.254"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {
            "79cf7cc5ed905062f7e976f0a64304bb85ab511cca17bb7d553e5c7903a0fe4f": {
                "Name": "c1",
                "EndpointID": "d113685d5388735fc9ab6cdeb1daae8500bf69090dddd8de15edd112e28d3a89",
                "MacAddress": "02:42:ac:14:64:00",
                "IPv4Address": "172.20.100.0/16",
                "IPv6Address": ""
            },
            "d04b3fc905a77e8c4cba70214baf962e8f078e6a0ed43c74c5b9a863ae172e91": {
                "Name": "c2",
                "EndpointID": "b1453701c4e85fa0128af98fab8a5301fc9dbc75c54ec9954da5aecf36e38ca0",
                "MacAddress": "02:42:ac:14:64:01",
                "IPv4Address": "172.20.100.1/16",
                "IPv6Address": ""
            }
        },
        "Options": {},
        "Labels": {}
    }
]

6.删除自定义网络
[root@elk91 ~]#docker network ls
NETWORK ID     NAME        DRIVER    SCOPE
405ee24664fc   bridge      bridge    local
a8d63d38ec96   host        host      local
af8c56e20106   none        null      local
2b121a538b9a   oldboyedu   bridge    local
[root@elk91 ~]#docker network rm oldboyedu   # 网络被使用中无法删除
Error response from daemon: error while removing network: network oldboyedu id 2b121a538b9abfec4b46bff5f1a80880d9c8142e19de993b73438b11014b9b72 has active endpoints

[root@elk91 ~]#docker network ls
NETWORK ID     NAME        DRIVER    SCOPE
405ee24664fc   bridge      bridge    local
a8d63d38ec96   host        host      local
af8c56e20106   none        null      local
2b121a538b9a   oldboyedu   bridge    local


[root@elk91 ~]#docker ps -aq
d04b3fc905a7
79cf7cc5ed90
[root@elk91 ~]#docker rm -f  `docker ps -aq`
d04b3fc905a7
79cf7cc5ed90


[root@elk91 ~]#docker network rm oldboyedu # 当容器不使用自定义网络时则可以删除
oldboyedu
[root@elk91 ~]#docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
405ee24664fc   bridge    bridge    local
a8d63d38ec96   host      host      local
af8c56e20106   none      null      local

3.实战案例

3.1使用自定义网络部署wordpress博客

使用自定义网络部署WordPress,要求如下:
	- 1.MySQL不对外暴露端口;
	- 2.仅将WordPress数据进行暴露;

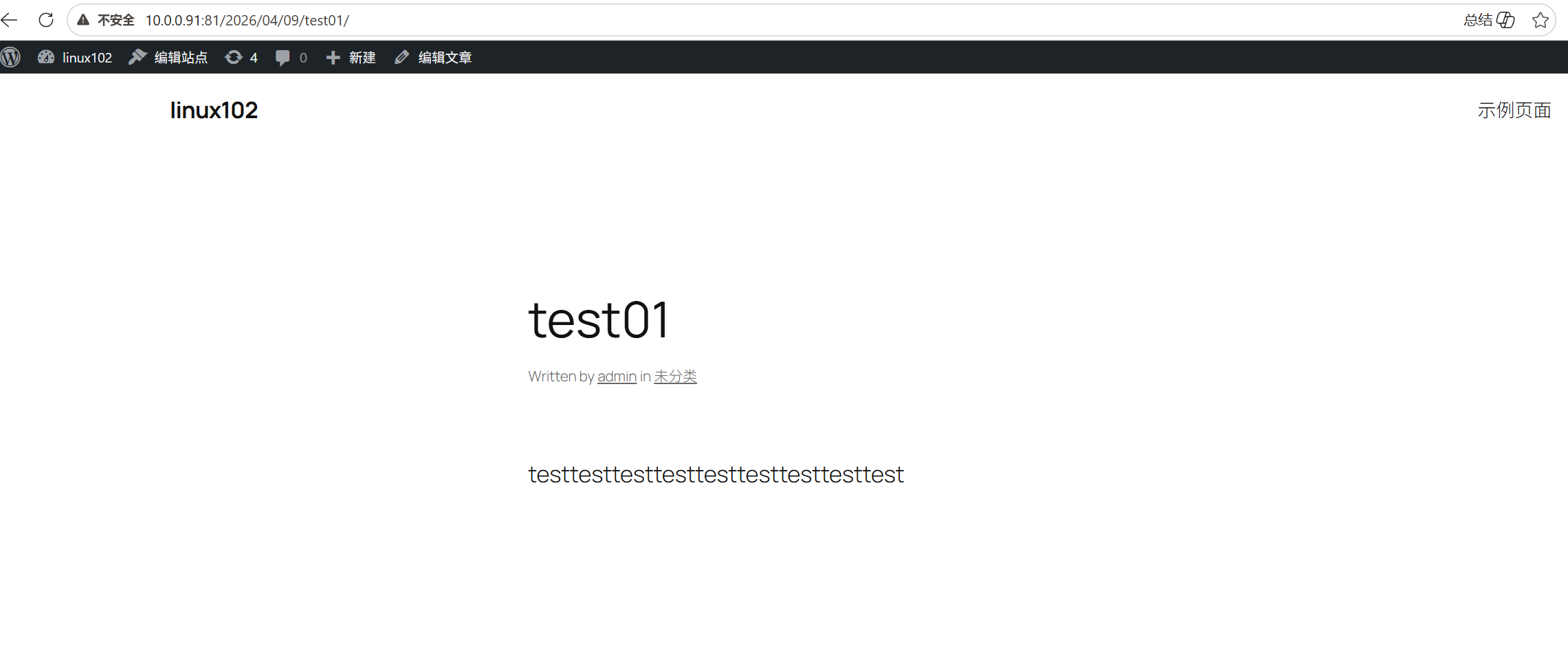

	- 3.发表测试文字，删除MySQL或者wordpress容器数据不丢失;

1.准备mysql镜像和wordpress镜像
[root@elk91 ~]#docker image load -i oldboyedu-mysql-v8.0.36-oracle.tar.gz
fc037c17567d: Loading layer [==================================================>]  118.8MB/118.8MB
152c1ecea280: Loading layer [==================================================>]  11.26kB/11.26kB
fb5c92e924ab: Loading layer [==================================================>]  2.359MB/2.359MB
5b76076a2dd4: Loading layer [==================================================>]  13.86MB/13.86MB
a6909c467615: Loading layer [==================================================>]  6.656kB/6.656kB
eaa1e85de732: Loading layer [==================================================>]  3.072kB/3.072kB
9513d2aedd12: Loading layer [==================================================>]  185.6MB/185.6MB
84d659420bad: Loading layer [==================================================>]  3.072kB/3.072kB
876b8cd855eb: Loading layer [==================================================>]  298.7MB/298.7MB
1c0ff7ed67c4: Loading layer [==================================================>]   16.9kB/16.9kB
318dde184d61: Loading layer [==================================================>]  1.536kB/1.536kB
Loaded image: mysql:8.0.36-oracle
[root@elk91 ~]#docker image ls mysql
REPOSITORY   TAG             IMAGE ID       CREATED       SIZE
mysql        8.0.36-oracle   f5f171121fa3   2 years ago   603MB
[root@elk91 ~]#docker image load -i oldboyedu-wordpress-v6.7.1-php8.1-apache.tar.gz
7914c8f600f5: Loading layer [==================================================>]  77.83MB/77.83MB
9d3505e94f88: Loading layer [==================================================>]  3.584kB/3.584kB
cca374cc7ecc: Loading layer [==================================================>]  320.2MB/320.2MB
93531ad2cad2: Loading layer [==================================================>]   5.12kB/5.12kB
76c322751b28: Loading layer [==================================================>]  50.46MB/50.46MB
e1862c15b46e: Loading layer [==================================================>]  9.728kB/9.728kB
41a48fee6648: Loading layer [==================================================>]   7.68kB/7.68kB
683fadaa2d15: Loading layer [==================================================>]  12.42MB/12.42MB
cd29cc24986e: Loading layer [==================================================>]  4.096kB/4.096kB
65ed9c32ccf8: Loading layer [==================================================>]  49.07MB/49.07MB
6a874987401a: Loading layer [==================================================>]   12.8kB/12.8kB
72d18aad6507: Loading layer [==================================================>]  4.608kB/4.608kB
541b75dced10: Loading layer [==================================================>]  4.608kB/4.608kB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
dd20169e4636: Loading layer [==================================================>]  69.66MB/69.66MB
7aa076c583ee: Loading layer [==================================================>]  56.58MB/56.58MB
1bd5766fdd49: Loading layer [==================================================>]  5.632kB/5.632kB
fd6f751879ec: Loading layer [==================================================>]  4.608kB/4.608kB
10ffebd37647: Loading layer [==================================================>]  91.65kB/91.65kB
9dfe5f929ccc: Loading layer [==================================================>]  76.94MB/76.94MB
3a7d623958af: Loading layer [==================================================>]  9.216kB/9.216kB
5a91ae3138b2: Loading layer [==================================================>]  6.656kB/6.656kB
Loaded image: wordpress:6.7.1-php8.1-apache
[root@elk91 ~]#docker image ls wordpress
REPOSITORY   TAG                   IMAGE ID       CREATED         SIZE
wordpress    6.7.1-php8.1-apache   13ffff361078   16 months ago   700MB

2.创建自定义网络
[root@elk91 ~]#docker network  create wp
20529ffbb479fe93b7b8cf3d2b5b3303e38a8f280c94836585a815c3413fd095

[root@elk91 ~]#docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
405ee24664fc   bridge    bridge    local
a8d63d38ec96   host      host      local
af8c56e20106   none      null      local
20529ffbb479   wp        bridge    local

3.启动mysql
[root@elk91 ~]#docker container run \
	mysql:8.0.36-oracle \
	--character-set-server=utf8mb4 \
	--collation-server=utf8mb4_unicode_ci \
	--default-authentication-plugin=mysql_native_password> -e MYSQL_ALLOW_EMPTY_PASSWORD="yes" \
> -d \
> --network wp \
> --restart always \
> -v oldboyedu-db:/var/lib/mysql/ \
> --name mysql-server \
> -e MYSQL_DATABASE="wordpress" \
> -e MYSQL_USER="linux102" \
> -e MYSQL_PASSWORD="oldboyedu" \
> mysql:8.0.36-oracle \
> --character-set-server=utf8mb4 \
> --collation-server=utf8mb4_unicode_ci \
> --default-authentication-plugin=mysql_native_password
1cbce0352bf0593046a9cee6bb2cf5894165b7862766e0fa6035b5afea285694
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                 COMMAND                  CREATED         STATUS         PORTS                 NAMES
1cbce0352bf0   mysql:8.0.36-oracle   "docker-entrypoint.s…"   8 seconds ago   Up 7 seconds   3306/tcp, 33060/tcp   mysql-server

[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9
local     linux100
local     oldboyedu-db

4.启动wordpress
[root@elk91 ~]# docker container run --name wordpress-server \
> -d \
> -p 81:80 \
> --network wp \
> --restart always \
> -v oldboyedu-wp:/var/www/html \
> -e WORDPRESS_DB_HOST=mysql-server \
> -e WORDPRESS_DB_USER=linux102 \
> -e WORDPRESS_DB_PASSWORD=oldboyedu \
> -e WORDPRESS_DB_NAME=wordpress \
> wordpress:6.7.1-php8.1-apache
c81fcc4367e79b4d5a2c7832419e8b13dd3eb23b39513b0e078d793d9da3047e
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                           COMMAND                  CREATED          STATUS          PORTS                               NAMES
c81fcc4367e7   wordpress:6.7.1-php8.1-apache   "docker-entrypoint.s…"   16 seconds ago   Up 15 seconds   0.0.0.0:81->80/tcp, :::81->80/tcp   wordpress-server
[root@elk91 ~]#docker volume ls
DRIVER    VOLUME NAME
local     f3a48d41ac94519e3a9dea524b2f52047788e0c3369fd3526c32fba496826ef9
local     linux100
local     oldboyedu-db
local     oldboyedu-wp

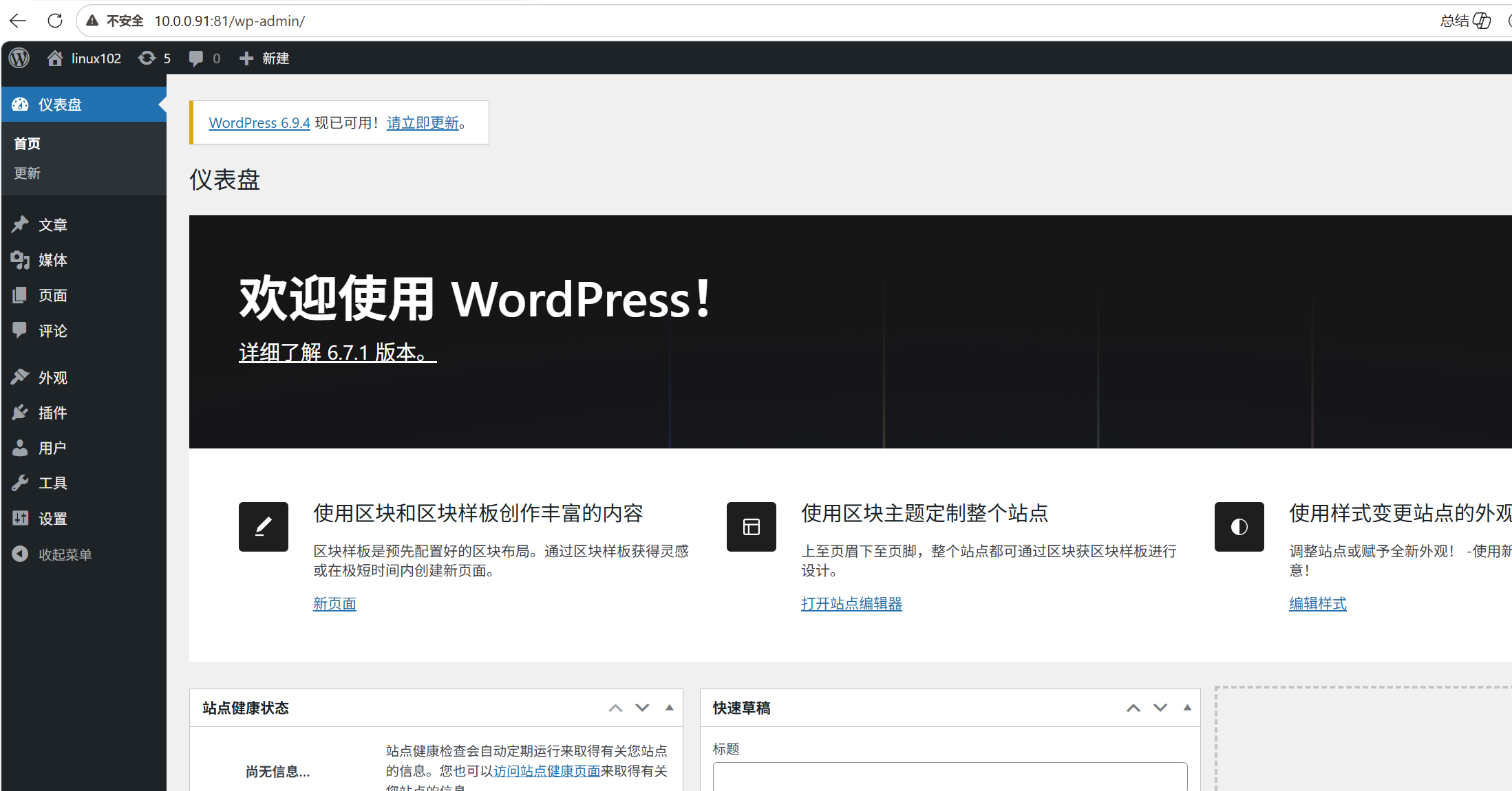

5.测试：
http://10.0.0.91:81/


6.删除容器
[root@elk91 ~]#docker ps -aq
c81fcc4367e7
1cbce0352bf0
[root@elk91 ~]#docker rm -f `docker ps -aq`
c81fcc4367e7
1cbce0352bf0

重新参考上面的步骤创建MySQL和WordPress的容器。

3.2基于docker容器部署zabbix案例

1.导入镜像到本地
[root@elk91 ~]#docker image load -i oldboyedu-zabbix-server-mysql-alpine-7.2-latest.tar.gz
08000c18d16d: Loading layer [==================================================>]  8.121MB/8.121MB
b2038076ec0a: Loading layer [==================================================>]   6.04MB/6.04MB
35b02ede82c0: Loading layer [==================================================>]  611.3kB/611.3kB
38e450648739: Loading layer [==================================================>]  86.02kB/86.02kB
6a3216859096: Loading layer [==================================================>]  3.963MB/3.963MB
2bf33e141b21: Loading layer [==================================================>]   83.2MB/83.2MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
ffcd8adfe8d7: Loading layer [==================================================>]   16.9kB/16.9kB
Loaded image: zabbix/zabbix-server-mysql:alpine-7.2-latest
[root@elk91 ~]#docker image load -i oldboyedu-zabbix-
oldboyedu-zabbix-java-gateway-alpine-7.2-latest.tar.gz     oldboyedu-zabbix-web-nginx-mysql-alpine-7.2-latest.tar.gz
oldboyedu-zabbix-server-mysql-alpine-7.2-latest.tar.gz
[root@elk91 ~]#docker image load -i oldboyedu-zabbix-java-gateway-alpine-7.2-latest.tar.gz
b0fd99c49c37: Loading layer [==================================================>]  1.067MB/1.067MB
0bffa45421c7: Loading layer [==================================================>]  185.8MB/185.8MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
8b93c54b414a: Loading layer [==================================================>]  4.096kB/4.096kB
274d999a3848: Loading layer [==================================================>]  3.584kB/3.584kB
Loaded image: zabbix/zabbix-java-gateway:alpine-7.2-latest
[root@elk91 ~]#docker image load -i oldboyedu-zabbix-web-nginx-mysql-alpine-7.2-latest.tar.gz
4e1fdc1c5a49: Loading layer [==================================================>]  111.4MB/111.4MB
afd3adb945d4: Loading layer [==================================================>]  28.16kB/28.16kB
38d8371765fc: Loading layer [==================================================>]  146.6MB/146.6MB
5f70bf18a086: Loading layer [==================================================>]  1.024kB/1.024kB
251f5795031e: Loading layer [==================================================>]   12.8kB/12.8kB
Loaded image: zabbix/zabbix-web-nginx-mysql:alpine-7.2-latest

2.创建自定义网络
[root@elk91 ~]#docker network create --subnet 172.20.0.0/16 --ip-range 172.20.240.0/20 zabbix-net
e9c503ef00a80b41a6f8315da124eb5a8e6d50983b832a7e2bd0bd2f4e85f81a
[root@elk91 ~]#docker network ls
NETWORK ID     NAME         DRIVER    SCOPE
405ee24664fc   bridge       bridge    local
a8d63d38ec96   host         host      local
af8c56e20106   none         null      local
e9c503ef00a8   zabbix-net   bridge    local
[root@elk91 ~]#docker network inspect zabbix-net
[
    {
        "Name": "zabbix-net",
        "Id": "e9c503ef00a80b41a6f8315da124eb5a8e6d50983b832a7e2bd0bd2f4e85f81a",
        "Created": "2026-04-09T23:01:27.636170456+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.20.0.0/16",
                    "IPRange": "172.20.240.0/20"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]

3.启动mysql服务
[root@elk91 ~]#docker image load -i oldboyedu-mysql-v8.0.36-oracle.tar.gz
fc037c17567d: Loading layer [==================================================>]  118.8MB/118.8MB
152c1ecea280: Loading layer [==================================================>]  11.26kB/11.26kB
fb5c92e924ab: Loading layer [==================================================>]  2.359MB/2.359MB
5b76076a2dd4: Loading layer [==================================================>]  13.86MB/13.86MB
a6909c467615: Loading layer [==================================================>]  6.656kB/6.656kB
eaa1e85de732: Loading layer [==================================================>]  3.072kB/3.072kB
9513d2aedd12: Loading layer [==================================================>]  185.6MB/185.6MB
84d659420bad: Loading layer [==================================================>]  3.072kB/3.072kB
876b8cd855eb: Loading layer [==================================================>]  298.7MB/298.7MB
1c0ff7ed67c4: Loading layer [==================================================>]   16.9kB/16.9kB
318dde184d61: Loading layer [==================================================>]  1.536kB/1.536kB
Loaded image: mysql:8.0.36-oracle

[root@elk91 ~]#docker run --name mysql-server -t \
>              -e MYSQL_DATABASE="zabbix" \
>              -e MYSQL_USER="zabbix" \
>              -e MYSQL_PASSWORD="zabbix_pwd" \
>              -e MYSQL_ROOT_PASSWORD="root_pwd" \
>              --network=zabbix-net \
>              --restart unless-stopped \
>              -d mysql:8.0.36-oracle \
>              --character-set-server=utf8 --collation-server=utf8_bin \
>              --default-authentication-plugin=mysql_native_password

[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                                          COMMAND                  CREATED         STATUS         PORTS       NAMES
7795bfd0b427   zabbix/zabbix-server-mysql:alpine-7.2-latest   "/usr/bin/docker-ent…"   9 seconds ago   Up 8 seconds   10051/tcp   mysql-server

4.部署java-gateway组件
[root@elk91 ~]#docker run --name zabbix-java-gateway -t \
>              --network=zabbix-net \
>              --restart unless-stopped \
>              -d zabbix/zabbix-java-gateway:alpine-7.2-latest
f1b78a1a69f730a226b0d084f7e1efaaf03d4e77468899e7c6f36c45a11b7822
[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                                          COMMAND                  CREATED         STATUS         PORTS       NAMES
f1b78a1a69f7   zabbix/zabbix-java-gateway:alpine-7.2-latest   "docker-entrypoint.s…"   7 seconds ago   Up 6 seconds   10052/tcp   zabbix-java-gateway

5.部署zabbix server
[root@elk91 ~]#docker run --name zabbix-server-mysql -t \
>              -e DB_SERVER_HOST="mysql-server" \
>              -e MYSQL_DATABASE="zabbix" \
>              -e MYSQL_USER="zabbix" \
>              -e MYSQL_PASSWORD="zabbix_pwd" \
>              -e MYSQL_ROOT_PASSWORD="root_pwd" \
>              -e ZBX_JAVAGATEWAY="zabbix-java-gateway" \
>              --network=zabbix-net \
>              -p 10051:10051 \
>              --restart unless-stopped \
>              -d zabbix/zabbix-server-mysql:alpine-7.2-latest
4eeec6695c697ecdef41dc309035fb381ffcd8f4f47a363a9f4ebdf923fdb52c

[root@elk91 ~]#docker ps -l
CONTAINER ID   IMAGE                                          COMMAND                  CREATED          STATUS          PORTS                                           NAMES
4eeec6695c69   zabbix/zabbix-server-mysql:alpine-7.2-latest   "/usr/bin/docker-ent…"   12 seconds ago   Up 12 seconds   0.0.0.0:10051->10051/tcp, :::10051->10051/tcp   zabbix-server-mysql

6.部署zabbix的webUI组件
[root@elk91 ~]#docker run --name zabbix-web-nginx-mysql -t \
>              -e ZBX_SERVER_HOST="zabbix-server-mysql" \
>              -e DB_SERVER_HOST="mysql-server" \
>              -e MYSQL_DATABASE="zabbix" \
>              -e MYSQL_USER="zabbix" \
>              -e MYSQL_PASSWORD="zabbix_pwd" \
>              -e MYSQL_ROOT_PASSWORD="root_pwd" \
>              --network=zabbix-net \
>              -p 80:8080 \
>              --restart unless-stopped \
>              -d zabbix/zabbix-web-nginx-mysql:alpine-7.2-latest
0cf10fd0523598da3b3d0b70f9286f14a02910bb9a1e00bd36143931adc77095


[root@elk91 ~]#docker ps -a
CONTAINER ID   IMAGE                                             COMMAND                  CREATED         STATUS                            PORTS                                             NAMES
0cf10fd05235   zabbix/zabbix-web-nginx-mysql:alpine-7.2-latest   "docker-entrypoint.sh"   2 minutes ago   Up 2 minutes (health: starting)   8443/tcp, 0.0.0.0:80->8080/tcp, :::80->8080/tcp   zabbix-web-nginx-mysql
4eeec6695c69   zabbix/zabbix-server-mysql:alpine-7.2-latest      "/usr/bin/docker-ent…"   6 minutes ago   Up 6 minutes                      0.0.0.0:10051->10051/tcp, :::10051->10051/tcp     zabbix-server-mysql
f1b78a1a69f7   zabbix/zabbix-java-gateway:alpine-7.2-latest      "docker-entrypoint.s…"   7 minutes ago   Up 7 minutes                      10052/tcp                                         zabbix-java-gateway
7795bfd0b427   zabbix/zabbix-server-mysql:alpine-7.2-latest      "/usr/bin/docker-ent…"   8 minutes ago   Up 8 minutes                      10051/tcp                                         mysql-server
                                        mysql-server

8.访问zabbix的webUI
http://10.0.0.91/
默认的用户名: Admin
密码: zabbix

Docker技术用到了哪些Linux特性
部署Dcoker

评论
